Acid-etched glass for optimum daylighting

Utilizing acid-etched glass is without doubt one of the only methods to diffuse daylight and optimize pure daylight in an area. Architects can obtain an incredible number of lighting situations simply by selecting the best mixture of substrate, etched end, and glass placement.

Study extra about daylighting with acid-etched glass in our article, How acid-etched glass can brighten your day.

You can too discover our choice of acid-etched glass.

Walker Glass – Let’s begin with speaking about daylighting and views. We profit from each. We want each. What does each contribute to human well-being?

Lisa Heschong – I spent the primary 25 years of my profession specializing in daylight as a supply of illumination in buildings, taking a look at it strictly from the standpoint of visible efficiency utilizing standards developed by the Illuminating Engineering Society and different teams. I used to be learning what was wanted from electrical mild or daylight, which had been assumed to be equal sources, and the best way to meet these visible wants as effectively as attainable. It was actually solely 20 years in the past that I started to appreciate that we had been leaving the impression of view out of the equation when it got here to the human expertise of an area. Since then, my excited about view has developed and remains to be evolving quickly.

1. Use a number of sources of pure mild

LH – Definitely, daylighting as a supply of illumination is essential. I’m an enormous proponent of utilizing skylights, which carry daylight into the middle of house. I additionally suggest designing buildings so that every one the glazing contributes towards balanced illumination. That features having daylight come from a couple of course. Multi-directional daylighting reduces shadows, reduces distinction, reduces glare, and permits the entire house to be extra evenly illuminated. You may use a window plus a skylight, view home windows from a couple of wall in a room, or excessive clerestory home windows, which carry daylight deeper into an area. All of these are methods that an architect ought to know and perceive.

Examples of multi-directional daylighting.
Left: home windows plus a skylight. Centre: home windows in a number of partitions. Proper: full-height home windows.

2. Room with a view: the significance of home windows

The Backyard Room on the Nationwide Aviary
Architect: Perfido Weiskopf Wagstaff + Goettel
Glass: 6mm Acuity™ glass with bird-deterrent AviProtek^® customized sample on floor 1 and Solarban^® 72 low-e coating from Vitro Architectural Glass on floor 3

3. Scale back distinction and glare

WG – What about managing daylight itself? How can architects use supplies like acid-etched glass to enhance pure daylighting?

LH – Used accurately, diffusing glass can present very even illumination. I all the time suggest diffusing glass for skylights. On this utility, the glass can take very sturdy daylight and unfold it evenly, broadly, and gently by way of the house, very similar to placing a sprinkler head on a hose. A lightweight-diffusing skylight prevents direct daylight from creating harsh sunspots, which may create glare with reflections or thermal discomfort in the event that they land on high of any person’s head.

When utilizing diffusing glass, it’s necessary to keep in mind that it may grow to be very brilliant in direct daylight. This type of glass primarily takes the beam of daylight and spreads it out, so the daylight fills the entire room. This additionally makes the entire window floor brighter, and it may create silhouettes with extreme distinction in sure circumstances. Thus, the usage of diffusing glass requires cautious consideration of who will probably be taking a look at it, and if it will likely be in full daylight.

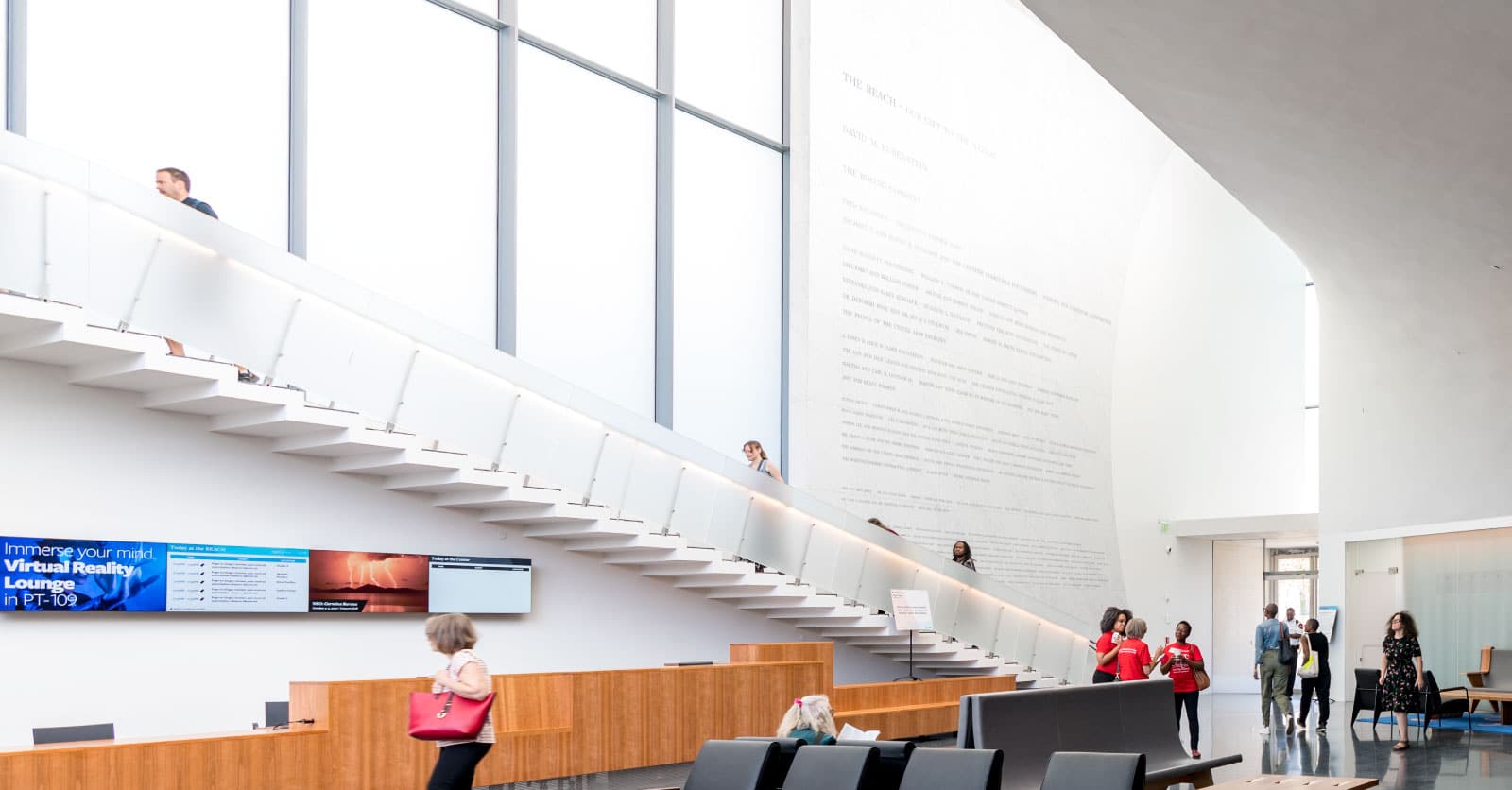

The REACH on the Kennedy Middle for the Performing Arts
Architect: Steven Holl Architects
Glass railings: 10mm Starphire Extremely-Clear^® glass with acid-etched Velour end on 2 faces

WG – Glare is a significant issue. Why does it hassle us a lot?

LH – Glare is painful. That, and it prevents you from seeing what it’s you wish to see. Glare is like noise. Noise prevents you from listening to what you wish to hear. In the identical means, glare prevents us from comfortably taking a look at what we wish to see.

With that mentioned, younger folks have eyes that adapt in a short time. People have an enormous vary of imaginative and prescient, and while you’re younger you’re taking it with no consideration. Even when one thing is obvious, younger eyes recuperate in a short time, inside seconds. Nonetheless, the older you get, the longer it takes to your eyes to recuperate. For an older individual, glare can stay disabling for a lot of minutes afterwards. Equally, for older folks driving at night time, the distinction between headlights and darkness will also be disabling. We naturally attempt to shield our eyes to keep away from these issues.

It’s necessary to notice that it’s not the brightness that tires our eyes, per se. It’s the distinction. For instance, when my mom received into her 90s, she would preserve all of the blinds in her home closed. Nonetheless, she additionally loved sitting on the porch to look out onto the backyard in full daylight. That’s as a result of the backyard had uniform illumination too, although it was in all probability a thousand occasions brighter than in the home. She was avoiding extreme distinction.

4. The 90/10 rule for daylight in interiors

WG – What does nice daylighting seem like, in your opinion?

LH – In a room with nice daylight, all of the people look nice, all of the crops look nice, and hues are brilliant and vivid. It’s straightforward to see every thing. It’s like being within the shade of an enormous tree in summer time, or strolling exterior on a barely overcast day. There’s loads of subtle daylight, however there’s nonetheless sufficient direct beam daylight to offer sparkle and highlights.

Be aware the excellence right here between subtle daylight, and direct beam daylight. Diffuse daylight creates tender shadows; beam daylight creates sharp shadows. Direct daylight could be ten to 100 occasions brighter than diffuse daylight from the sky.

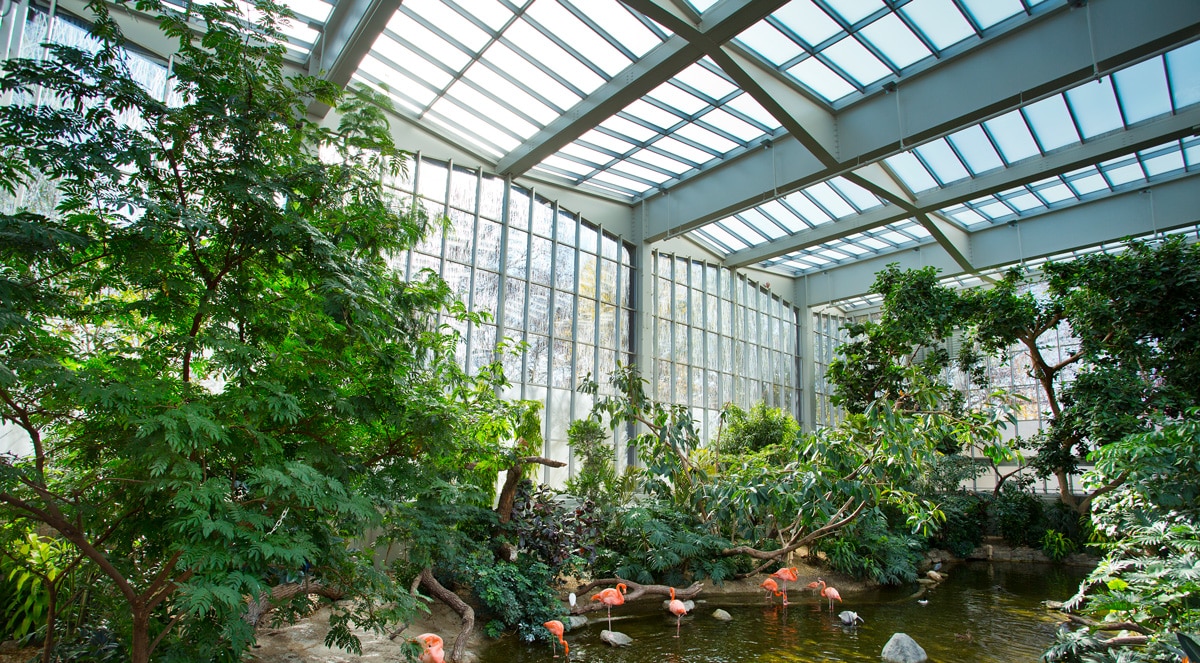

The newly renovated Wetlands Habitat on the Nationwide Aviary
Architect: Montgomery Smith
Patterned Glass: 3mm & 5mm Starphire Extremely-Clear^® with bird-deterrent AviProtek^® sample 214 on floor 1
Full-surface etched glass: 3mm Starphire Extremely-Clear^® with Walker Textures^® Velour end on floor 1

I’ve a rule of thumb for designers: permit direct daylight onto about 10% of an inside, judged relative to the ground space. This may create sparkle and curiosity, whereas not overwhelming anybody with an excessive amount of daylight. Throughout the daylighting metrics that we’ve created by way of the Illuminating Engineering Society², someplace between 2% and 20% of ‘Annual Daylight Publicity’ in an area appears to be tolerable, relying on the design. At greater than 2% of the ground space in daylight, we expect individuals are more likely to begin pulling blinds, and at greater than 20%, they’re typically overwhelmed and lose management.

5. Give occupants management over their daylighting

WG – Then folks begin pulling blinds and darkening the house, proper? At this level, they’re shedding the good thing about views and daylight.

LH – That’s proper, and that’s okay if it’s momentary. It’s practically not possible to anticipate all visible situations in an area as a result of daylight is so dynamic. Due to this fact, it’s essential to permit the occupants to attract blinds, curtains, or shades. Even when you suppose you recognize precisely the place the solar goes to be, reflective surfaces can seem and create insupportable situations on sunny days. For instance, there could be momentary, however insupportable, daylight reflections off puddles, different home windows, or windshields. Just about any constructing will finally get retrofitted with some type of operable solar management if it’s not there originally. You may as nicely give it some thought firstly and get it proper.

6. You possibly can’t faux pure daylight

WG – May we discuss timing and circadian rhythms? Daylight modifications all through the day, and now we are able to get synthetic lighting programmed to imitate pure daylight cycles. Are these kind of lighting equal by way of circadian rhythms and human well-being?

LH – Engineers are always attempting to determine the proper formulation in order that they will mimic nature. Then, as soon as they suppose they’ve it, biologists discover one thing else necessary about pure programs that was disregarded of the engineering formulation. I’ve watched this trip, backwards and forwards for many years. We are likely to have a variety of hubris that people can determine all of it out and engineer the proper resolution to interchange nature and make a product to promote. There are lots of people working very arduous on that proper now.

Nonetheless, we’ve been studying not too long ago that the well being impacts of daylight should not nearly its timing and depth, but additionally the subtleties of its wavelengths and the way these change all through the day. These modifications are particularly noticeable at daybreak and nightfall, when there are probably the most fast shifts in daylight’s spectral content material. Apart from this, it’s very troublesome to match daylight’s depth with electrical lighting, and it’s costly by way of power.

Daylighting additionally provides folks a direct visible understanding of their atmosphere, supporting our inside ‘cognitive map.’. Climate, time of day, and daylight’s pure development over time give us a way of temporal and spatial orientation. Daylight makes you are feeling related to life and the true world. Even when we might simulate daylight completely, folks would nonetheless know that they had been in a simulation. It’s unnerving and disorienting. It could be like placing your self in a film 24/7 as an alternative of in actual life.

The Krishna P. Singh Middle for Nanotechnology on the College of Pennsylvania
Architects: Weiss/Manfredi Architects / R.A Heintges & Associates Constructing Envelope consultants
Glass: 6mm Starphire Extremely-Clear^® with Walker Textures^® customized sample on floor 1

WG – That’s a well timed remark, contemplating how a lot of our lives has gone digital over the previous couple of years. Regardless of how a lot science progresses or how a lot we’re “related” through digital expertise, we nonetheless crave a reference to the true world.

LH – Sure, certainly. There’s nothing rather more actual than daylight!

7. Location, location, location

WG – Is there the rest important that architects ought to know?

LH – Nicely, to do a superb job with daylighting, an architect actually wants to grasp the solar’s day by day and seasonal place relative to the constructing’s location and orientation. That is as elementary as understanding the place gravity is. You wouldn’t design a constructing with out understanding gravity, and you shouldn’t design a constructing with out understanding photo voltaic motion and native local weather.  For instance, the place, when and why is an excessive amount of daylight an issue? And the place and when is a little bit of daylight pleasant?

WG – Thanks very a lot to your time, and for sharing your experience with us.

As we’ve seen, good daylighting is essential for human consolation and well-being. It’s additionally extra advanced than many notice, combining components like diffusion, glare, timing and occupants’ behaviour in often-unpredictable methods. Nice designers and designers perceive the best way to harness these parts to create a symphony of harmonious, channelling pure daylight to encourage delight as an alternative of making discomfort.

Guidelines for Nice Daylighting

Wish to design fantastically daylit buildings? Right here’s a guidelines of the seven important concerns for a well-daylit house:

• 1. Use a number of sources of daylight: For instance, design home windows together with a skylight, or home windows on a number of partitions to fill out shadows and scale back distinction.
• 2. Room with a view: Embrace views of the outside in your daylighting design technique.
• 3. Scale back distinction and glare: Diffusing supplies like acid-etched glass can unfold daylight evenly by way of an area, decreasing harsh contrasts and making mild simpler on the eyes.
• 4. The 90/10 rule: Goal for 90% subtle daylight in interiors, and 10% direct daylight. This retains the general lighting light and uniform, whereas permitting some sparkle and highlights so as to add visible curiosity.
• 5. Give occupants management: Embrace blinds, curtains, or different instruments to let occupants handle the daylight and daylight of their areas.
• 6. You possibly can’t faux pure daylight: There’s rather more to circadian rhythms than timing, and pure daylight remains to be much better for human well being than intelligent facsimiles of it.
• 7. Location, location, location: Above all, it’s essential to perceive the dynamics of photo voltaic positions and weather conditions at your explicit constructing web site.

First Commonwealth Federal Credit score Union
Architects: RGW Structure LLC
Glass: 6mm clear glass with Walker Textures^® Velour end on floor 2

About Lisa Heschong

Lisa Heschong was a Founding Principal of the Heschong Mahone Group (HMG), and a licensed architect for 30 years. At HMG, a constructing science and power effectivity consulting agency primarily based in Sacramento, California, Ms. Heschong led the analysis staff that discovered a correlation between daylight in lecture rooms and improved pupil efficiency, and daylight and retail gross sales.

She is a Fellow of the Illuminating Engineering Society (IES) and a newly elected member of the Daylight Academy. She has served as Chair of the IES Medals Committee and the IES Daylight Metrics Committee, the place she helped set up a brand new set of climate-based daylight efficiency metrics, together with sDA and ASE.

Her newest e-book, Visible Enjoyment of Structure: Daylight, Imaginative and prescient and View (Routledge 2021), explores new findings on the physiological, cognitive, social and cultural significance of daylight and look at in our on a regular basis environments.

Study extra at lheschong.com

References

1. Heschong, Lisa. Visible Enjoyment of Structure: Daylight, Vison and View (New York: Routledge, 2021), 1.
2. LM-83-23, Authorised Technique: Spatial Daylight Autonomy (sDA) and Annual Daylight Publicity (ASE), Illuminating Engineering Society, www.ies.org  (Be aware: These metrics require annual hourly evaluation.  Thus, they think about all yearly photo voltaic positions and native climate situations.)
